An overview of Secure Boot in Debian

Secure Boot

Foreword

This blog post isn’t meant to be a definitive guide about Secure Boot in Debian. The idea is to give some context about the boot sequence on the PC architecture, about the Secure Boot technology, and about some implementation details in Debian.

Short on time? Jump to current status of Secure Boot in Debian!

How does a system boot?

Let’s start with how the PC architecture gets booted: once upon a time, the BIOS was responsible for locating boot devices and trying them in a configurable order. One would usually configure a bootable disk with a bootloader in its MBR (e.g. LILO ou GRUB), which would then check its own settings, and boot a Linux kernel passing parameters and an optional initramfs.

Things changed “a little” with the UEFI technology, aiming at replacing the BIOS (and at being usable on other architectures like ARM). The initial firmware comes with many more features, and with recommended or required settings, like the ESP partition (usually mounted on /boot/efi) which makes it possible to exchange data between the UEFI-level implementation and the installed system. Regarding booting, there’s a boot manager implemented at the firmware level, which can be configured from the operating system (through the efibootmgr command or through some EFI libraries).

Here’s a shortened efibootmgr -v example showing debian as the default operating system, with the standardized EFI/debian/grubx64.efi path that can be found in the ESP (which is a FAT filesystem, hence the notation with backslashes), and with two PXE-based fallbacks:

$ sudo efibootmgr -v
BootCurrent: 0000
Timeout: 0 seconds
BootOrder: 0000,0001,0002
Boot0000* debian                        HD(1,GPT,0d5445e2-92b4-4a31-9629-c6c796b3e07c,0x800,0xf3800)/File(\EFI\debian\grubx64.efi)
Boot0001* IBA GE Slot 00C8 v1381        BBS(Network,,0x0)AMBO
Boot0002* IBA GE Slot 0200 v1321        BBS(Network,,0x0)AMBO

UEFI-enabled firmwares usually make it possible to use either “UEFI booting” or “Legacy BIOS” (also called CSM).

Booting a Linux kernel with UEFI instead of Legacy BIOS usually leads to some extra information getting exposed through /sys, namely under the /sys/firmware/efi directory. In particular, the efivars.ko module makes it possible to access variables that are stored in NVRAM.

What is Secure Boot?

Secure Boot is a technology that makes it possible to check and possibly trust the boot chain. The initial firmware would check a digital signature on the bootloader; the kernel getting loaded and its modules would get a similar check. The idea is to double check that what is being run as the core of the operating system is the expected system, and that no rogue operations have been taking place. Having support for Secure Boot was a requirement for hardware targetting conformance with the Windows 8 specifications, so Secure Boot enabled devices have been spreading over the past few years…

Digital signatures are all good but who should a firmware trust? Given the market was mainly about machines getting sold with Windows, the firmware would be configured to trust keys from Microsoft by default. Some firmware implementations make it possible to enroll other keys, but that’s not supported by all devices…

Until Linux distributions have designed and implemented a plan to support Secure Boot (getting a bootloader that can check and start a Linux kernel in a suitable fashion, and signed by a trusted key), the usual solution to run a Linux installer would be to fiddle with the UEFI settings, turning Secure Boot off entirely. This can be cumbersome, as some firmware implementations only show this option after an administrator password has been set…

What does the plan look like for Debian?

Secure Boot support has been in the works for quite a long time, and there were many design issues to iron out, including some infrastructure-side changes regarding digital signatures.

Here’s a very quick summary:

The first step is the firmware→shim chainloading. Fortunately, only shim needs to get a signature from Microsoft, so that the machine’s firmware can validate the shim component getting loaded. Being a minimal and auditable component means it shouldn’t need to get updates too often, which should keep the number of roundtrips to Microsoft (to get a new signature) rather low.

The shim→GRUB chainloading is done if the signature on GRUB is validated against the Debian test key or the Debian production key (more on that below). Ditto for the GRUB→Linux kernel chainloading.

From a packaging point of view, these digital signatures are a bit of a nightmare: one wants to be able to build packages on autobuilders (on build daemons, or buildds), possibly in a reliable and reproducible fashion (see the Reproducible Builds initiative). That’s why some modifications to the grub2 and linux source packages have been floating around for some time.

As of early March 2019, the state of the shim and shim-signed packages in Debian unstable was a bit complicated: the shim package was updated with new code while the matching signature from Microsoft wasn’t available for inclusion in an updated shim-signed package yet… Steve McIntyre and Cyril have been working hard exploring various solutions allowing to get back to a set of matching packages (#922179). Some difficulties encountered in doing so highlight the need for reproducible builds on the one hand and for a carefully designed supply chain on the other hand. This is why the next section is focussed on the -signed and -template packages that are in place for the grub2 and linux source packages. As of April 2019, the binaries produced by the shim source package have been reorganized to match the setup used by grub2 and linux.

How are -signed and -template packages handled in Debian?

Quick look into GRUB

Let’s start by looking at the binary packages produced by the grub2 source package. There are 48 binaries as of version 2.02+dfsg1-17 so let’s only list some of them:

The set of packages to be installed would usually be decided by the grub-installer component of the Debian Installer; a machine installed with legacy BIOS could have this set of GRUB packages (taken from Debian Stretch):

… with grub-pc pulling the relevant tools in grub-pc-bin and both of them relying on the grub*-common packages.

On an EFI installation (also Debian Stretch), the set would look like this:

Of course, EFI is available on more than just the amd64 architecture, so the grub-efi package pulls the right grub-efi-$ARCH, which then pulls binaries and the common files.

Signatures for GRUB

All binary packages mentioned above are built on autobuilders, and contain no signatures. But some of them are special, namely:

Those are indeed binary packages produced by the grub2 source package, but they are effectively meant to be the source package for the signed binary packages!

Let’s look at the contents of grub-efi-amd64-signed-template_2.02+dfsg1-17_amd64.deb (letting the usual /usr/share/doc and /usr/share/lintian directories aside):

/usr/share/code-signing/grub-efi-amd64-signed-template/
/usr/share/code-signing/grub-efi-amd64-signed-template/files.json
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/README.source
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/bug-control
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/changelog
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/compat
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/control
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/copyright
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/rules
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/source/
/usr/share/code-signing/grub-efi-amd64-signed-template/source-template/debian/source/format

There seems to be a source package tree there, with metadata gathered in a debian directory.

Let’s check the top-level files.json file that describes which files need to be signed and how:

{
    "version": "2",
    "packages": {
        "grub-efi-amd64-bin": {
            "trusted_certs": [],
            "files": [
                {"sig_type": "efi", "file": "usr/lib/grub/x86_64-efi/monolithic/gcdx64.efi"},
                {"sig_type": "efi", "file": "usr/lib/grub/x86_64-efi/monolithic/grubnetx64.efi"},
                {"sig_type": "efi", "file": "usr/lib/grub/x86_64-efi/monolithic/grubx64.efi"}
            ]
        }
    }
}

Let’s check what the debian/control file looks like:

Source: grub-efi-amd64-signed
Section: admin
Priority: optional
Maintainer: GRUB Maintainers <REDACTED>
Uploaders: Individual Developers <REDACTED>
Standards-Version: 3.9.8
Build-Depends: debhelper (>= 10.1~),
 sbsigntool [amd64 arm64 i386],
 grub-efi-amd64-bin (= 2.02+dfsg1-17)
Rules-Requires-Root: no

Package: grub-efi-amd64-signed
Architecture: amd64
Depends: grub-common (= 2.02+dfsg1-17)
Recommends: shim-signed [amd64]
Built-Using: grub2 (= 2.02+dfsg1-17)
Description: GRand Unified Bootloader, version 2 (amd64 UEFI signed by Debian)
 GRUB is a portable, powerful bootloader.  This version of GRUB is based on a
 cleaner design than its predecessors, and provides the following new features:
 .
  - Scripting in grub.cfg using BASH-like syntax.
  - Support for modern partition maps such as GPT.
  - Modular generation of grub.cfg via update-grub.  Packages providing GRUB
    add-ons can plug in their own script rules and trigger updates by invoking
    update-grub.
 .
 This package contains the binaries signed by the Debian UEFI CA to be used by
 shim-signed.

Let’s highlight a few things:

The last point explains why the grub-installer component of the Debian Installer doesn’t even need to list any *-signed packages, the following chain of dependencies takes care of installing the needed packages for the initial chainloading: grub-efigrub-efi-amd64grub-efi-amd64-bin, the last one recommending grub-efi-amd64-signed, which in turns recommends shim-signed.

Let’s check what the debian/rules file looks like:

#!/usr/bin/make -f

SIG_DIR := debian/signatures/grub-efi-amd64-bin

%:
        dh $@

override_dh_auto_install:
        set -e ; \
        find "$(SIG_DIR)" -name '*.sig' -printf '%P\n' | \
        while read sig; do \
                dst="debian/tmp/$${sig%/monolithic/*}-signed/$${sig##*/}ned" ; \
                install -m 0755 -d "$${dst%/*}" ; \
                install -m 0644 "/$${sig%.sig}" "$$dst" ; \
                sbattach --attach "$(SIG_DIR)/$$sig" "$$dst" ; \
        done

override_dh_install:
        dh_install --sourcedir=debian/tmp .

As mentioned in the SecureBoot/Discussion page of the Debian Wiki, signatures are added to source-template/debian/signatures/<original-binary-package-name>/<complete-path-name>.sig when the -signed-template file is processed by the code signing service (which won’t be detailed in depth in this article): This explains why there is a loop in the dh_auto_install override, to attach the generated signatures to the actual files that were installed because of the build dependencies on grub-efi-amd64-bin.

This leads to the following contents for the resulting grub-efi-amd64-signed binary package:

/usr/lib/grub/x86_64-efi-signed/gcdx64.efi.signed
/usr/lib/grub/x86_64-efi-signed/grubnetx64.efi.signed
/usr/lib/grub/x86_64-efi-signed/grubx64.efi.signed

which are a signed version of the following files in the grub-efi-amd64-bin binary package:

/usr/lib/grub/x86_64-efi/monolithic/gcdx64.efi
/usr/lib/grub/x86_64-efi/monolithic/grubnetx64.efi
/usr/lib/grub/x86_64-efi/monolithic/grubx64.efi

(There’s also an extra file both in the source template and in the binary package to instruct reportbug which package to file bug report against but that’s really anecdotal.)

Wrapping up for GRUB

  1. The grub2 source package generates many binary packages.
  2. Those named *-signed-template are post-processed on a specific code signing service, with their contents being used to generate a source package that builds the final binary packages containing signed files.
  3. Those signed files are the combination of files shipped in other binary packages, with a digital signature appended.

Signatures for the Linux kernel

The same mechanism is used for the linux source package. It is slightly different because of the amount of binary packages that are built from this source package: 1194 as of version 4.19.28-2! There can be various flavours and patchsets involved, for each supported architecture; plus many udebs (components to be used in the Debian Installer), explaining this high number.

One might have noticed that the linux-image-<ABI> packages are no longer built by the linux source package though. Let’s focus on amd64 again:

  1. The linux source package builds a linux-image-amd64-signed-template binary package.
  2. Using this *-signed-template binary package, many signed packages are generated, which include the following, familiar one: linux-image-4.19.0-4-amd64. Those don’t come with a -signed suffix, probably because changing their names in all packages and scripts related to the Linux kernel would have meant huge work for little benefit.

Let’s look at the linux-image-amd64-signed-template binary package as of version 4.19.28-2:

/usr/share/code-signing/linux-image-amd64-signed-template
/usr/share/code-signing/linux-image-amd64-signed-template/files.json
/usr/share/code-signing/linux-image-amd64-signed-template/source-template
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/changelog
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/compat
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/control
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/copyright
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-amd64.postinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-amd64.postrm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-amd64.preinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-amd64.prerm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-cloud-amd64.postinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-cloud-amd64.postrm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-cloud-amd64.preinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-cloud-amd64.prerm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-rt-amd64.postinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-rt-amd64.postrm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-rt-amd64.preinst
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/linux-image-4.19.0-4-rt-amd64.prerm
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/README.source
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/rules
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/rules.gen
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/rules.real
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/source
/usr/share/code-signing/linux-image-amd64-signed-template/source-template/debian/source/format


Some differences compared to the previous grub-efi-amd64-signed-template package:

Let’s check the Source stanza of the debian/control file, leaving the 55 Package entries aside for a moment:

Source: linux-signed-amd64
Section: kernel
Priority: optional
Maintainer: Debian Kernel Team <REDACTED>
Uploaders: Ben Hutchings <REDACTED>
Standards-Version: 4.1.1
Build-Depends:
 debhelper (>= 10.1~),
 rsync,
 sbsigntool,
 kernel-wedge (>= 2.99~),
 linux-kbuild-4.19,
 linux-support-4.19.0-4 (= 4.19.28-2),
 linux-image-4.19.0-4-amd64-unsigned (= 4.19.28-2),
 linux-image-4.19.0-4-cloud-amd64-unsigned (= 4.19.28-2),
 linux-image-4.19.0-4-rt-amd64-unsigned (= 4.19.28-2)
Homepage: https://www.kernel.org/
Rules-Requires-Root: no
Vcs-Browser: https://salsa.debian.org/kernel-team/linux
Vcs-Git: https://salsa.debian.org/kernel-team/linux.git

Glancing at the build dependencies, there are 3 linux-image-* binary involved, containing files that will need signatures. Both linux-kbuild-4.19 and linux-support-4.19.0-4 are likely to be use to make the Makefile machinery work, while kernel-wedge is used to dispatch kernel modules into various binary packages.

Instead of looking at all 55 binary packages, let’s concentrate on some of them. Only 3 of them are deb packages, while all others (named *-amd64-di) are udeb packages, for use in the Debian Installer.

Another huge difference compared to GRUB is the files.json file. While the GRUB one was only used to list 3 files for a single package, the Linux kernel one is close to 1 MB in size!

It also comes with different kinds of signatures. On the GRUB side, the signature type was efi; on the Linux side, that happens for some files as well:

which is consistent with the GRUB to Linux chainloading. But all other files that need signatures are the kernel modules, which use the linux-module signature type.

Signatures for other packages

This write-up is overly long already, so the following packages won’t be detailed, let’s just mention both the source and binary packages for each:

What is the current status of Secure Boot in Debian?

Short version: Starting with the Debian Installer Buster RC 1 release, Secure Boot support should work out of the box on amd64!

Longer version: The Debian Installer Buster Alpha 5 release was released with initial support for Secure Boot. Initially, the signing service running on the Debian infrastructure was using a test key, and some manual enrollment was needed. Since the publication of this last alpha, the switch to the production key happened, and the following release (Debian Installer Buster RC 1) shipped with signatures performed with the production key.


Published: Fri, 19 Apr 2019 15:35:00 +0200

Debugging with netconsole

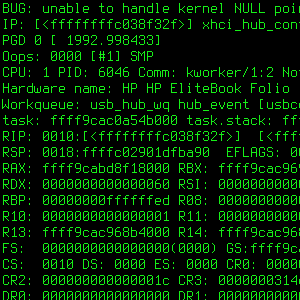

Kernel BUG/OOPS

Why would one need netconsole?

Sometimes the Linux kernel crashes so badly that it leaves no traces in the logs. Even having a shell with a dmesg -w running in the background might prove to be insufficient.

There’s a nice tool in the kernel which makes it possible to send kernel logs over the network. It’s called netconsole. As far as limitations are concerned, one shall note that it’s UDP only, and over Ethernet (in other words: no wireless). The good news is that it can usually make the last crucial lines available, as it requires a rather limited set of features (as opposed to getting files written on a filesystem, which needs to get onto physical storage).

Example: netconsole made it possible to get a stacktrace of a kernel OOPS when writing to some USB mass storage devices, and to file #917206 in the Debian bug tracking system.

Terminology: Let’s call the crashing machine a patient and the logging machine a doctor.

The netconsole module needs to be loaded on the patient only, while the doctor just needs a user-space program to capture traces. If the module’s configuration needs to be updated or fixed, the module can be unloaded at any time through:

sudo modprobe -r netconsole

It is also highly recommended to ask the kernel to log all the things by setting this specific console log level:

sudo dmesg -n 8

The current console log level can be checked by dumping the contents of the /proc/sys/kernel/printk file, and reading the first value. With the default configuration on Debian 9 (Stretch), the console log level is 4, which isn’t sufficient to confirm netconsole is properly set up; it seems one needs at least console log level 7.

Easy case: on a local network

Here’s an example with both machines on a local network:

Local network

Doctor setup

A receiver is needed on the doctor side, which needs to accept UDP packets. There are several nc (short for netcat) implementations, e.g. netcat-traditional and netcat-openbsd, with subtly different flags. Let’s use socat instead:

sudo apt-get install socat
socat UDP-LISTEN:6666,fork - | tee -a ~/netconsole.txt

Let’s dissect those lines:

Of course the doctor needs to accept such packets, and its firewall might need an update accordingly. If it isn’t maintained through shorewall, ferm, or another dedicated firewall software, the following iptables command might serve as a basis to get packets through:

sudo iptables -A INPUT -p udp -m udp --dport 6666 -j ACCEPT

Patient setup

Now, to have the patient send stuff to the doctor, a simple modprobe call is needed:

sudo modprobe netconsole netconsole=@/eth0,6666@192.168.0.2/

What happens here? One requests the netconsole module to be loaded, and one specifies the parameters. Details can be read in the Linux kernel documentation (Documentation/networking/netconsole.txt), but concentrating on the points of interest here:

That should be enough to get this output on the doctor side:

[ 1748.295633] netpoll: netconsole: local port 6665
[ 1748.295637] netpoll: netconsole: local IPv4 address 0.0.0.0
[ 1748.295639] netpoll: netconsole: interface 'eth0'
[ 1748.295640] netpoll: netconsole: remote port 6666
[ 1748.295642] netpoll: netconsole: remote IPv4 address 192.168.0.2
[ 1748.295644] netpoll: netconsole: remote ethernet address AA:BB:CC:DD:EE:FF
[ 1748.295647] netpoll: netconsole: local IP 192.168.0.1
[ 1748.295702] console [netcon0] enabled
[ 1748.295704] netconsole: network logging started

If nothing appears there, one might want to double check the current console log level (see introduction), and possible packet drops/rejects on the firewall side.

Slightly harder case: over internet

Because one might not have a second machine handy, it’s also possible to go through a router and send stuff across the internet. Let’s consider this case:

Over internet

Doctor setup

The instructions are the same as in the local case, even if it would probably make sense to be more selective regarding firewalling: filtering on the source IP would likely be a good idea.

Patient setup

The fundamental change compared to the local network use case is the need for routing. This is supported by netconsole but one needs to specify an extra parameter: the MAC address of the (first) router. To obtain it, one can use net-tools’s arp command or iproute2’s ip neighbour command:

arp 192.168.0.254
ip n show 192.168.0.254

Supposing it returned the 01:02:03:04:05:06 MAC address, loading the module becomes:

sudo modprobe netconsole netconsole=@/,6666@93.184.216.34/01:02:03:04:05:06

Now, if one is running into firewall-related issues, one can change the source port for the UDP packets. The default is 6665, but assuming one wants to send from an unfiltered 1234 port, that becomes:

sudo modprobe netconsole netconsole=1234@/,6666@93.184.216.34/01:02:03:04:05:06

Permanent debugging?

The approach presented here is temporary by nature, as no modifications of the patient’s system configuration are involved. If desired, one can set the various options to be passed to the netconsole module in a modprobe configuration file. Example with a dedicated modprobe.d snippet:

echo options netconsole netconsole=@/eth0,6666@192.168.0.2/ | sudo tee /etc/modprobe.d/netconsole-local-debugging.conf

Even with such an extra configuration file, those settings would only get applied when the netconsole module is loaded. To have it loaded automatically at boot-up, it can be listed in /etc/modules or in a separate modules-load.d snippet:

echo netconsole | sudo tee /etc/modules-load.d/netconsole.conf

Warning: That relies on having network set up early in the boot process (which won’t be documented here because that’s another topic and that would be require a long digression). If the network isn’t configured already at the time netconsole is set up, one can get:

sudo dmesg | grep netconsole
[   11.677066] netpoll: netconsole: local port 6665
[   11.677143] netpoll: netconsole: local IPv4 address 0.0.0.0
[   11.677216] netpoll: netconsole: interface 'eth0'
[   11.677287] netpoll: netconsole: remote port 6666
[   11.677356] netpoll: netconsole: remote IPv4 address 192.168.0.2
[   11.677430] netpoll: netconsole: remote ethernet address ff:ff:ff:ff:ff:ff
[   11.677514] netpoll: netconsole: device eth0 not up yet, forcing it
[   15.432381] netpoll: netconsole: no IP address for eth0, aborting
[   15.432540] netconsole: cleaning up

In any case, it might be a good idea to also automate setting a sufficiently high console log level. Passing loglevel=8 on the kernel command line could be a way, or a tiny start-up script calling dmesg -n 8 or updating the /proc/sys/kernel/printk file.

Enjoy tracking down kernel bugs!


Published: Thu, 03 Jan 2019 10:00:00 +0100

Debugging black screen in Debian Installer

Tux, the Linux mascot

What was noticed?

A few weeks ago, other developers reported on the #debian-boot IRC channel that they were seeing regressions while testing daily builds of the graphical version of the Debian Installer. This could easily be reproduced by anyone, fetching the latest netboot/gtk/mini.iso file for the amd64 architecture, which can be found in the directory of daily builds for amd64.

Timing-wise, it might appear that coincided with the move of all our git repositories from the good, old alioth.debian.org hosting service to the brand new salsa.debian.org, the Gitlab instance replacing the previous Fusionforge one. But that transition had nothing to do with our issue, which is rather related to our move from the 4.15 kernel series to the 4.16 one.

First investigation

Looking at that black screen, it looked like the X server was starting just fine, but nothing was being drawn, and input devices (keyboard, mouse) appeared inactive. Thankfully, the QEMU/KVM monitor makes it possible to trigger a switch to a different TTY, to access log files and run a few commands. It was possible to extract kernel logs and X logs to compare what was happening with different kernel versions. The big surprise was: the logs were identical, except for the uname output and the timestamps embedded in the logs. Switching back to the TTY where X was expected to show up, here it was, properly started and displaying the usual language selection screen! Moving from X logs to system logs (including kernel logs):

May 12 02:25:02 kernel: [    3.302164] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302291] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302351] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302450] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302530] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302682] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302804] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.302963] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.303009] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:02 kernel: [    3.303078] random: debconf: uninitialized urandom read (8 bytes read)
May 12 02:25:19 init: starting pid 170, tty '/dev/tty2': '-/bin/sh'
May 12 02:25:21 debconf: Setting debconf/language to en
May 12 02:25:21 main-menu[229]: DEBUG: resolver (libgcc1): package doesn't exist (ignored)
May 12 02:25:21 main-menu[229]: INFO: Falling back to the package description for brltty-udeb
May 12 02:25:21 main-menu[229]: INFO: Menu item 'localechooser' selected
May 12 02:25:22 debconf: Setting debconf/language to en
May 12 02:25:22 gtk-set-font: Switching to font 'DejaVu Sans' for 'en'
May 12 02:25:24 kernel: [   25.303708] random: crng init done


So it appears there were randomness/entropy-related issues very soon after boot-up; then, roughly 20 seconds later, debconf (which drives the installation process, asking questions and waiting for answers) was properly started; closely followed by the kernel reporting some “random” initialization had finished. This rang a bell so I’ve reported my findings as #898468, putting the Debian kernel team in copy.

Ben Hutchings swiftly replied with some more information about the possible culprit. Traditionally, X clients and X servers share an authentication cookie (see the XAUTHORITY environment variable, which can point to e.g. ~/.Xauthority, or the xauth command line tool), called MIT-MAGIC-COOKIE-1, which requires some bits of randomness. It had been reported that some desktop session programs rely on libICE to handle that cookie, which uses a function from the libbsd library, arc4random_buf(), which in turn uses the getrandom() system call exposed by the kernel.

That getrandom() syscall was recently modified as part of a security fix, and this made callers block more easily when not enough entropy has been gathered. A parameter/an option can be specified to make this call non-blocking, but it would then return an error immediately instead of blocking. More information about this can be found in the Fixing Linux getrandom() in stable thread on the debian-release@ mailing list, but basically the idea was to get libbsd fixed in unstable/testing rather than simply reverting the security fix (the latter was preferred as a follow-up to the security updates for stable which were triggering severe regressions).

The installer team hadn’t checked that libICE was actually used by the installer, but waiting for the libbsd fix to rebuild and recheck was deemed like a sensible course of action. Unfortunately, right after a first bug fix upload was accepted into unstable, no changes could be noticed in a freshly rebuilt installer…

Deeper investigations

A quick reality check revealed that the absence of changes was to be expected, as the graphical installer doesn’t use the libICE library, which doesn’t even ship any udebs…

Back to square one/screen black: debconf was being reported as the process affected by the blocking behaviour of the getrandom() call so the first step was to chase down randomness-related calls in its source code. Unfortunately nothing turned up…

Next try was diving into the gtk+2.0 source code, since that’s the graphical toolkit used by the graphical installer. That looked promising at first since there were a few calls to g_random_int() to initialize the internal stamp field for some data structures. That function is defined in the glib1.0 package (see glib/grand.c), and trying to get rid of the calls from gtk+2.0 made no differences at all…

At this point, it wasn’t clear which part was responsible for the calls to getrandom(), so Cyril went for a brute force approach. A new custom build of the graphical installer was prepared, including the strace tool (which traces syscalls); and modifying the start-up scripts to wrap debconf’s execution with strace. The rootskel package ships this line in /lib/debian-installer/menu:

exec debconf -o d-i $MENU

which was modified by a sed call in the main Makefile of the debian-installer package (build/Makefile):

sed 's,exec debconf,exec strace -v -f -s 400 -o /tmp/debconf.strace debconf,' -i "/lib/debian-installer/menu"

This resulted in strace writing a /tmp/debconf.strace file which could then be used to debug this further. Since the Debian Installer comes with little debugging tools, this file can be extracted using a simple network pipe, with nc/netcat.

A new hope

Searching for getrandom() calls, they were apparently appearing right after opening the /etc/fonts/fonts.conf file, but also while opening other files under the /etc/fonts/fonts.d/ directory, which contains configuration snippets for fontconfig. Searching its source code, it appeared two files could be relevant:

Adding a few fprintf(stderr, "...\n"); statements around all suspicious calls made it clear: the uuid_generate_random() calls (implemented in libuuid1/libuuid1-udeb, packages built from the util-linux source) are responsible for the delays. Let’s look at the implementation in lib/randutils.c, the UUID generation calling get_random_bytes() in the same file:

/*
 * Generate a stream of random nbytes into buf.
 * Use /dev/urandom if possible, and if not,
 * use glibc pseudo-random functions.
 */
#define UL_RAND_READ_ATTEMPTS   8
#define UL_RAND_READ_DELAY      125000  /* microseconds */

void random_get_bytes(void *buf, size_t nbytes)
{
        unsigned char *cp = (unsigned char *)buf;
        size_t i, n = nbytes;
        int lose_counter = 0;

#ifdef HAVE_GETRANDOM
        while (n > 0) {
                int x;

                errno = 0;
                x = getrandom(cp, n, GRND_NONBLOCK);
                if (x > 0) {                    /* success */
                       n -= x;
                       cp += x;
                       lose_counter = 0;

                } else if (errno == ENOSYS) {   /* kernel without getrandom() */
                        break;

                } else if (errno == EAGAIN && lose_counter < UL_RAND_READ_ATTEMPTS) {
                        xusleep(UL_RAND_READ_DELAY);    /* no etropy, wait and try again */
                        lose_counter++;
                } else
                        break;
        }

        if (errno == ENOSYS)
#endif
        /*
         * We've been built against headers that support getrandom, but the
         * running kernel does not.  Fallback to reading from /dev/{u,}random
         * as before
         */
        {
                int fd = random_get_fd();
                /* … */

So if the HAVE_GETRANDOM macro was defined at compile-time, a getrandom() call is attempted, in non-blocking mode. If the ENOSYS error is triggered, the break; gets us out of the loop, and the code carries one with a fallback to reading from /dev/urandom or /dev/random (one gets the relevant file descriptor with random_get_fd() as seen on the last line.

But if the error is EAGAIN instead, that means not enough entropy was available. In this case, there’s a little delay getting added through xusleep(), and further attempts are made until a given limit (UL_RAND_READ_ATTEMPTS) is reached. At this point, the final break; triggers an exit of the loop and the fallback described above is reached.

Where to go from here?

To make extra sure diagnostics were correct, a little patch was developed as a proof of concept, disabling the HAVE_GETRANDOM macro, so that the while loop quoted above isn’t even tried, and so that one jumps directly to the fallback reading from /dev/*random. It was a bit tricky to get this part right since there are several places where it can be enabled: a configure.ac check, another check on the __NR_getrandom macro, and a final check on the SYS_getrandom macro.

--- a/configure.ac
+++ b/configure.ac
@@ -462,7 +462,6 @@ AC_CHECK_FUNCS([ \\
        getdtablesize \\
        getexecname \\
        getmntinfo \\
-      getrandom \\
        getrlimit \\
        getsgnam \\
        inotify_init \\
--- a/lib/randutils.c
+++ b/lib/randutils.c
@@ -27,14 +27,14 @@

-#elif defined (__linux__)
+#elif 0
    /* usable kernel-headers, but old glibc-headers */

-#if !defined(HAVE_GETRANDOM) && defined(SYS_getrandom)
+#if 0
 /* libc without function, but we have syscal */

This patch ensures a direct read from /dev/*random, which means delays go away, and that Debian Installer starts properly. Hurray?

Unfortunately, it doesn’t seem reasonable to degrade the quality of randomness used by a function called uuid_generate_random(), since it might be used by something a little more critical than setting UUIDs for fonts in fontconfig; a quick search on sources.debian.org returns 58 packages with that name in their source code at the very least. Increasing this function’s complexity to add an I don’t care about entropy quality option doesn’t seem too good either. So maybe it might make sense to see if fontconfig might be tweaked to use something that wouldn’t rely on getrandom()

Time to report these findings to the Debian Installer team as a whole, adding fontconfig and util-linux developers to the loop. Let’s see what consensus we can reach.

Update (June 2018)

Ben Hutchings saved the day one more time, checking my status report and quickly pointing out that the same issue was encountered with plymouth as well. That component also runs very early in the boot process, to provide with a graphical “splash” screen.

Borrowing the fix from plymouth was very easy, as it was only about creating the fontconfig cache at build-time thanks to an fc-cache call; and that finally made this issue vanish!

There was still a little issue left to fix, as the X server had been updated in the meanwhile: a transition to a major version of the X stack had started in unstable in the meanwhile, and there was a regression with the fbdev driver. The server would fail to start with:

      Xorg: symbol lookup error: /usr/lib/xorg/modules/drivers/fbdev_drv.so: undefined symbol: shadowUpdatePackedWeak

The Debian Installer side was tracked in #900317, even if the actual issue was first filed as #900613 against the xserver-xorg-video-fbdev package (also affecting its xserver-xorg-video-fbdev-udeb counterpart).

Having very responsive X people helped Cyril realize the patch was easy to grab and test, and that finally concluded the treasure hunt to repair the graphical installer! Two weeks after that, the Debian Installer Buster Alpha 3 release was published.


Published: Tue, 05 Jun 2018 18:45:00 +0200
Last modified: Mon, 02 Jul 2018 09:00:00 +0200

Tails: early work on reproducibility

Tails logo

Quick introduction about Tails and build reproducibility

Tails is a live operating system, booting from USB or from DVD, aiming at preserving user’s privacy and anonymity. It is Free Software and based on the Debian GNU/Linux distribution. The Tails website contains a more complete overview of the project.

Over the last few years, an increasing number of software developers and security-focused people have been looking into build reproducibility: when a build system is deterministic, building a given component from a given source should always lead to the exact same binary result (byte-for-byte). The Tor project and the Debian distribution were among the first teams to work towards this goal. More information can be found on the reproducible-builds.org website, whose motto is Provide a verifiable path from source code to binary.

What does it mean in the Tails context? The main “product” of the Tails project is a bootable ISO image which contains the live system containing tools designed and preconfigured to preserve privacy and anonymity. Compromising this image would defeat the whole point of the project and could even endanger lives of journalists or whistleblowers relying on it. Making the image build process reproducible means developers and even users can reproduce it on their own hardware and make sure the ISO image published by the Tails project matches the one which was built locally, or which was verified by others.

How Debamax became involved

Flashback: October 2015.

Cyril had already been working on Debian derivatives for various customers and had been identified by some Tails developers as a potential asset to work on the first steps towards reproducibility. A sprint approach was chosen to tackle the freezable APT repository topic: meet, discuss, design, code; repeat a few times.

What follows is an overview of the results, with a few pointers to code and documentation. They are presented sequentially but all those topics are closely intertwined, and that had to be taken into account during the design phase.

Keeping track of packages in archives

The first objective was to imagine a workflow which would make it possible to build a given ISO image with the exact same set of Debian packages. An interesting data point is that 4 separate archives are used during a Tails build:

Of course, those archives aren’t static: the Debian archive is updated up to 4 times a day, the Debian Security archive is updated whenever a new security update is published, etc. So we needed a way to keep track of all packages used during the build but also of the state of each archive at any point where an image was being built.

It was decided to use reprepro, which is designed to produce custom Debian repositories, while also making it possible to mirror upstream repositories. It also allows to create snapshots, which exactly fits the need to keep packages around! Packages which would normally be deleted or replaced by a new version (when a synchronization happens) are kept as long as there’s at least one snapshot that depends on them.

First results:

Keeping track of packages used during the build

While working for other customers, Cyril already had to keep track of packages used to build Debian images: the idea was to list all packages and versions used for a given build, making it possible to generate changelog-like summaries of changes between two builds.

A similar approach was used here, where triplets are gathered with: package, version, URI. Here’s what the implementation looks like:

That means three files are generated with those triplets: one with binary packages from the bootstrap phase, one with binary packages downloaded through apt-get, and one with source packages downloaded through apt-get as well.

Another script was developed to aggregate those results into what we call a build-manifest; it gathers all origins (the archives mentioned in the previous section), their references (the snapshot used during the build), and all packages along with their versions. Example for the 3.2 release: tails-amd64-3.2.build-manifest.

Keeping track of packages in the long term

At this point we have the following results:

Keeping all packages forever wouldn’t be reasonable, so snapshots are expired after a few days. Since storing packages actually used for releases is the whole point of mastering repositories in the first place, an extra tool on the infrastructure side was developed to generate tagged snapshots from the time-based ones, thanks to references and packages listed in the build-manifest for the release.

This leads to these results:

Putting all the pieces together

Fastforward: November 2017.

Large parts of this initial freezable APT repository sprint were spent designing what the new workflow would look like during development phases, and during freeze periods. Of course, adjustments were made during the following releases, and the current status is documented on the APT repository page. Details can be found there about the custom APT repository (for Tails), about the time-based snasphots, and about the tagged snapshots.

This was only preliminary work, as there are many reasons which can trigger differences in the resulting ISO image. Details can be found in the reproducible builds blueprint. Many issues have been tackled by the Tails developers since then, and that’s how the 3.3 release has been announced as the first reproducible ISO image! (Of course, this is still rather new, and bug #14933 has been filed already, but the current results are amazing already!)

Congratulations to the Tails developers for reaching this milestone, and many thanks for this cooperation opportunity!


Published: Fri, 08 Dec 2017 10:15:00 +0100

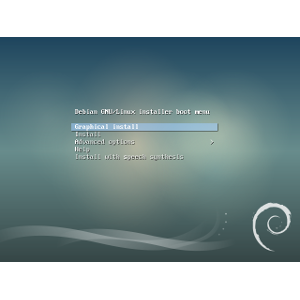

Debian Installer: Stretch released

Debian Installer: Stretch

Foreword

Since the previous post, several Debian Installer release candidates were published, and this post sums up everything that happened between the Debian Installer Stretch RC 2 release and the final Stretch release.

Stretch RC 3

Cyril published the Debian Installer Stretch RC 3 release on 2017-04-10, roughly two months after Stretch RC 2.

Improvements

A number of fixes piled up since then, including the following important changes:

Other changes can be found in the release annoucement.

Here are a few screenshots (click for full view) illustrating the Korean rendering issues follow, so that one can visualize the impact of a font issue:

Stretch D-I RC 2 (broken) Stretch D-I RC 3 (fixed)
Broken Korean rendering in language selection screen

Fixed Korean rendering in language selection screen

Entirely broken Korean screen Fixed Korean screen

Hardware support

The full list of hardware-related changes is reproduced below:

Stretch RC 4

With the amount of changes in Stretch RC 3, and the Stretch release date approaching (2017-06-17), it was expected to have a smaller number of changes in the Stretch RC 4 release. Thankfully, that's what happened by the end of May (2017-05-27), with most changes being translations updates: the number of full translations saw a bump from 15 to 21.

Improvements

Hardware support

Stretch RC 5

This Debian Installer release happened on 2017-06-13, only a few days before the final Debian release, planned on 2017-06-17. There were still quite a number of changes to merge, and only those with the most visible impact are listed below.

Improvements

Hardware support

Stretch final

Usually, one would use the same debian-installer upload for the last release candidate and for the final release, but Cyril asked the linux maintainers to merge a last change before the release: It started to become clear in early June that the missing i2c-modules udeb on the armhf platform was the likely cause for several issues (#864536, #864457, #856111).

Performing uploads, builds, and unblocks of linux, debian-installer, and debian-installer-netboot-images before the final release wasn't entirely stressless, but it seemed worth trying. Adding new binary packages in point releases is a very rare event, and going through the NEW queue via unstable looked like the right thing to do, even if the timing was very tight!

What's next?

The next Debian Installer report will likely feature a summary of installer-related changes merged into the 8.9 and 9.1 point releases (for Jessie and Stretch respectively).

Also, Cyril will be giving a talk titled “News from the Debian Installer” during DebConf17. This year, the annual Debian Conference takes place in Montreal, Canada (more info is available on the DebConf17 schedule). See you there?


Published: Sat, 05 Aug 2017 12:00:00 -0400

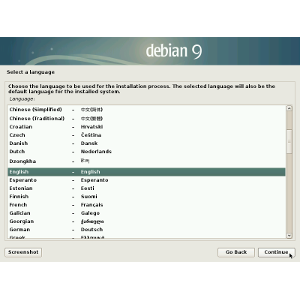

Debian Installer: Stretch RC 2 released

Debian Installer: Stretch RC 2

Foreword

Since the previous blog post, two Debian Installer release candidates were published, so both will be mentioned in this blog post.

Stretch RC 1

As mentioned in the Plans section of the Stretch Alpha 8 summary: with the full freeze coming up, it made sense to switch from the Alpha numbering to the Release Candidate one. That’s why Cyril published the Debian Installer Stretch RC 1 release on 2017-01-15.

Unfortunately, some blockers were found with merged-/usr setups, so the new debootstrap default was reverted. Even if some of these bugs were fixed in the meanwhile, it seemed unreasonable to enable the new code again near the end of the stretch release cycle, so it’s going to be postponed until after the buster release cycle has started.

Here is a list of other changes:

Stretch RC 2

Since the Linux kernel team was finally moving towards the target kernel version for Stretch (4.9, even if earlier discussions mentioned 4.10), it seemed like a good idea to get a new Debian Installer released as soon as possible, which explains why Debian Installer Stretch RC 2 was released on 2017-02-02, only a few weeks after Stretch RC 1.

Another significant change happened besides the Linux kernel update, with the os-prober component receiving major changes. Let’s have a look at its description:

    Package: os-prober
    Description: utility to detect other OSes on a set of drives
     This package detects other OSes available on a system and outputs the
     results in a generic machine-readable format.


This component is used to determine which other operating systems might be hanging around on various partitions and discs, and it’s used e.g. by update-grub to include menu entries for other Linux distributions, Windows, etc. Unfortunately, its historical operating system detection code has been triggering issues in some environments involving virtualization, which ended up in data loss in some cases.

The relevant code was heavily overhauled, and one might hit some regressions with new versions of this component (1.72 and later). Details about these significant changes can be found in the changelog entry for the 1.72 upload, and one might notice that the preparations for this new release candidate resulted in a last-minute regression fix in the 1.74 upload. Similar issues have been reported with the dmsetup create command hanging, leading to a frozen progress indicator when grub is being set up (see bug report #853927). This can be worked around by switching to a console and killing the dmsetup process (see this message for more details), until this issue is fully diagnosed and fixed.

Next release candidate

With the full freeze in effect, Debamax is trying to make sure Cyril can spend as much time as possible on two complementary tasks:

More to come in our next Debian Installer report!


Published: Mon, 13 Feb 2017 13:30:00 +0100

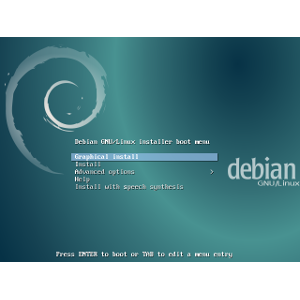

Debian Installer: Stretch Alpha 8 released

Debian Installer: Stretch Alpha 8

Release process

It took a few months after Stretch Alpha 7 (published 2016-07-04), but the Stretch Alpha 8 release of the Debian Installer happened a few days ago. Release preparations had to be delayed a bit because a fix was needed in the linux packaging (see bug report #839552) so that mounting FAT partitions worked again, since this is needed for EFI support.

As a release manager, Cyril has to make sure things look good enough for a release. This usually involves freezing udeb-producing packages for a while, so that the main set of packages used to build the Debian Installer doesn’t get any last minute changes that might bring some regressions while stabilization is in progress.

The debian-installer package got uploaded on 2016-10-27 but two major issues popped up:

The first issue was due to the rather recent linux/linux-signed split. The idea behind this move is preparing for Secure Boot support, with linux being used to build linux kernel and modules as usual, and linux-signed holding extra signatures for them, so that they can be verified cryptographically. This exposed an awful and old bug which hadn’t been detected until now. Then an extra commit got added as a work around for the linux/linux-signed specific situation: code comes from the linux source package, so that’s what needs to be listed in Built-Using. Further improvements are planned (see bug report #842719), by checking for a possible Built-Using field in each udeb, so that this workaround can be replaced by some more generic code.

The second issue was due to the reintroduction of InRelease support. There are two ways of validating the contents of a given distribution on a Debian mirror: checking the Release file against its detached signature (Release.gpg), or checking the InRelease file alone, as it contains an inline signature. Since only gpgv is available in a Debian Installer environment, the idea was to split the InRelease file into two files: the Release file and its signature. The tricky part is that the final newline is dropped by GnuPG, so a little tr … | sed … | tr … dance was added to do the same. Unfortunately, while it works fine with usual implementations of those commands, that’s not the case with the busybox implementation used in Debian Installer, leading to a bad signature result during the installation process (see bug report #842591). Thankfully Ansgar Burchardt had a proof of concept ready with a simple state machine in POSIX shell, which Cyril could merge and upload to fix debootstrap-udeb, fixing this showstopper.

Major update: debootstrap and merged-/usr

As mentioned above, debootstrap was updated, but not only for InRelease support. It received a number of fixes and improvements (see the release announce for the details), but the biggest change deserves a longer explanation: debootstrap now defaults to merged-/usr.

Once upon a time, UNIX systems were booted from a floppy disk, and once the boot sequence had finished, one would mount extra resources onto the /usr directory: programs, libraries, home directories, etc. Nowadays, it makes little sense to keep the distinction between boot-time and non-boot-time tools, and it was proposed to get rid of this distinction entirely. One way to achieve this is as simple as setting up symlinks for a number of directories: bin, sbin, lib, and other libXX (one can find lib32, lib64, etc. depending on the architecture), respectively pointing at usr/bin, usr/sbin, usr/lib, etc. This approach means there’s no need to change any single package, it’s just about using a specific directories+symlinks setup at installation time.

The options to enable or disable this feature are --merged-usr and --no-merged-usr respectively. The Debian script (shared across many versions) was updated to default to merged-/usr for stretch and later, which explains why this Debian Installer Stretch Alpha 8 release now defaults to a merged-/usr setup.

Credits: This change was driven by both Marco d’Itri and Ansgar Burchardt, while Julien Cristau worked on most other changes. Thanks!

Some final notes:

Next release: Stretch Alpha 9

A few things are planned for the next release:


Published: Tue, 22 Nov 2016 00:08:00 +0100

Hello, World!

Hello, World!

Debamax SAS has been successfully registered with the Trade and Company Register in Rennes, and has officially started operating in October! The legal notices page has further information regarding this registration and identification numbers.

A Twitter account (@DEBAMAX) is going to be set up to complement this website and its RSS feed.


Published: Wed, 7 Oct 2015 12:00:00 +0200
